COMPONENT	SPECIFICATION
Image Sensor	1/3 type interline transfer CCD
Effective Pixels	NTSC : 976 (H) x 494 (V) PAL : 976 (H) x 582 (V)
Scanning Mode	2:1 interlace
Scanning Area	4.8 (H) x 3.6 (V) mm
Scanning Frequency	Horizontal: 15.734 kHz Vertical: 59.94 Hz Horizontal: 15.625 kHz Vertical: 50.00 Hz
Horizontal Resolution	650 TV lines
Minimum Illumination	Color: 0.08 lx (F1.4, Sens Up: Off, AGC: High) B/W: 0.05 lx (F1.4, Sens Up: Off, AGC: High)
Signal-to-Noise Ratio	52 dB (AGC: OFF)
White Balance	AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 8,000 K), ATW2 (2,400 ~ 8,000 K)
Light Control	ALC/ALC+/ELC
AGC	ON (LOW, MID, HIGH) / OFF
Electronic Shutter	OFF (1/60), AUTO, 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000, 1/120,000 OFF (1/50), AUTO, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000, 1/120,000
Electronic Sensitivity Up	32x max. AUTO, 512x max. FIX
Day/Night	Day & Night (Electorical) Off / Auto
Digital Noise Reduction	High or Low
Scene File	2 patterns
Video Motion Detection	OFF / MOTION DET / SCENE CHANGE
Privacy Zone	ON (1) / ON (2) / OFF, up to 8 zones
Auto Image Stabilizer	ON / OFF
Camera Title	16 alphanumeric characters
Synchronization	Internal (INT) / Multiplexed Vertical Drive (VD2) Internal (INT)
Video Output	1.0 V [p-p] / NTSC composite 75 1.0 V [p-p] / PAL composite 75
Controller Interface	Coaxial Multiplex System
Setup Method	OSD setup menu
Language	English, Russian, German, French, Italian, Spanish, Chinese, Japanese
Safety/EMC Standard	UL (UL60065), FCC (Part 15 ClassA), C-UL (E60065), DOC (ICES-003) CE (EN60065, EN55022 ClassB, EN55024), GOST (GOST R 51558)
Power Source and Power Consumption	12 V DC, 210 mA 24 V AC, 60 Hz, 2.3 W 12 V DC, 180 mA 24 V AC, 50/60 Hz, 2.1 W
Ambient Operating Temperature	–10 °C ~ +50 °C (14 °F ~ 122 °F)
Ambient Operating Humidity	90 % or less (without condensation)
Dimensions	72 mm (W) x 55 mm (H) x 81 mm (D)
Mass (Approx.)	160 g 150g
Finish	ABS resin / Sail White

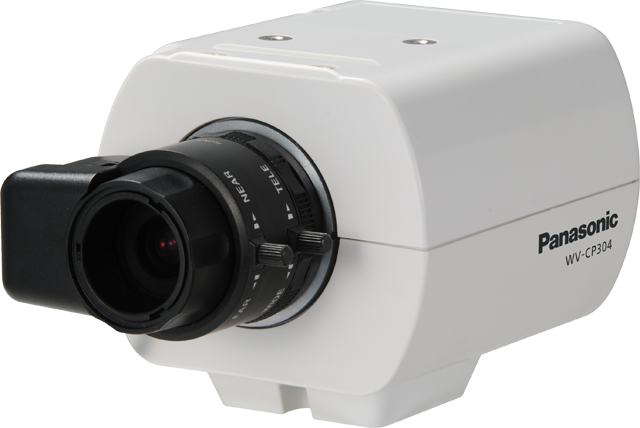

Fixed Box Analog Camera
